Check Email | My Account | Contact Us

Search for on the web shopping
Fri, 19 Aug, 2022
homepage
referrals
signup
help
contact us
education frontpage
a-z of references
general knowledge
places
plants & animals
science

Top links
- Sudoku
- Collectibles
- PSP
Lithium aluminium hydride
Lithium aluminium hydride
General
Systematic name Lithium aluminium hydride
Other names LAH, lithium alanate,
lithium tetrahydridoaluminate
Lithal (UK slang)
Molecular formula LiAlH4
Molar mass 37.95 g/mol
Appearance white crystals (pure samples)
grey powder (commercial material)
CAS number [16853-85-3]
Properties
Density and phase 0.917 g/cm3, solid
Solubility in water reactive
in diethyl ether, THF 5.92 and 2.96 mol/L
Melting point 150 °C (423 K), decomposing
Boiling point n/a
Structure
Coordination geometry ?
Crystal structure monoclinic
Dipole moment ? D
Hazards
MSDS External MSDS
Main hazards highly flammable
NFPA 704 Image:nfpa_h3.pngImage:nfpa_f2_w.pngImage:nfpa_r2.png
Flash point n/a
R/S statement R: 15 S: 7/8, 24/25, 43
RTECS number BD0100000
Supplementary data page
Structure & properties n, εr, etc.
Thermodynamic data Phase behaviour
Solid, liquid, gas
Spectral data UV, IR, NMR, MS
Related compounds
Related hydride sodium borohydride
sodium hydride
Except where noted otherwise, data are given for
materials in their standard state (at 25°C, 100 kPa)
Infobox disclaimer and references
Structure of lithium aluminium hydride
Lithium Aluminium Hydride ( LiAl H4), commonly abbreviated to LAH, is a powerful reducing agent used in organic chemistry. It is more powerful than the related reducing agent Sodium tetrahydridoborate due to the weaker Al-H bond compared to the B-H bond. It will convert esters, carboxylic acids and ketones to alcohols; and nitro compounds into amines.LAH violently reacts with water, including atmospheric moisture, and the pure material is pyrophoric. Commercial material is inhibited with mineral oil to allow handling in air.Pure, recrystallized (from diethyl ether) LAH is a white solid. Commercial samples are almost always grey due to trace contamination with aluminium metal. White air-exposed commercial samples of LAH have absorbed enough moisture to become a mixture of lithium hydroxide and aluminium hydroxide.

Jump to Page Contents

Pay as you go
No monthly charges. Access for the price of a phone call Go>

Unmetered

Flat rate dialup access from only 4.99 a month Go>

Broadband
Surf faster from just 13.99 a month Go>

Save Even More
Combine your phone and internet, and save on your phone calls
More Info>

This weeks hot offer
24: Series 5 24: Series 5

In association with Amazon.co.uk 26.97



Contents

Preparation
Inorganic reactions
Use in organic chemistry
Thermal decomposition
Solubility data
Crystal structure
Thermodynamic data



Preparation - Contents

LAH is usually produced by the reaction between lithium hydride (LiH) and aluminium chloride (AlCl3)
4LiH + AlCl3 rightarrow LiAlH4 + 3LiCl
which proceeds with a high yield of LAH (97 % w/w). LiCl is removed by filtration from an ethereal solution of LAH, with subsequent precipitation of LAH to yield a product with around 1 % w/w LiCl.


Inorganic reactions - Contents

LAH and NaH can be used to produce sodium aluminium hydride (NaAlH4) by metathesis in THF with a yield of 90.7 % w/w
LiAlH4 + NaH rightarrow NaAlH4 + LiH
Potassium aluminium hydride (KAlH4) can be produces with a yield of 90 % w/w by reaction in diglyme in a similar way
LiAlH4 + KH rightarrow KAlH4 + LiH
The reverse, i.e., production of LAH from either sodium aluminium hydride or potassium aluminium hydride can be obtained by reaction with LiCl in diethyl ether and THF with a yield of 93.5 and 91 % w/w, respectively.
NaAlH4 + LiCl rightarrow LiAlH4 + NaCl
KAlH4 + LiCl rightarrow LiAlH4 + KCl
Magnesium alanate (Mg(AlH4)2) can be synthezised from LAH and MgBr2
2LiAlH4 + MgBr2 rightarrow Mg(AlH4)2 + 2LiBr



Use in organic chemistry - Contents

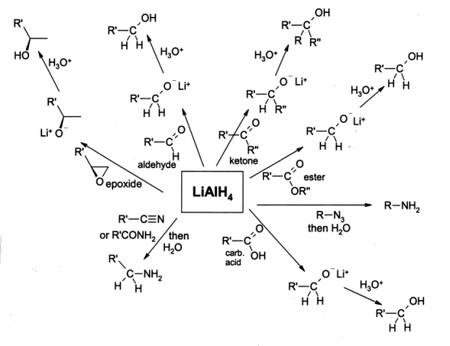

Lithium aluminium hydride is widely used in organic chemistry as a very powerful reducing agent. Despite handling problems associated with its reactivity, it is even used at the small-industrial scale, although for large scale reductions the related reagent sodium bis(2-methoxyethoxy)aluminium hydride or Red-Al is more usual. For such purposes it is usually used in solution in diethyl ether, and an aqueous workup is usually performed after the reduction in order to remove inorganic by-products. It is most commonly used for the reduction of esters and carboxylic acids to primary alcohols; prior to the advent of LiAlH4 this was a difficult conversion involving sodium metal in boiling ethanol (the Bouveault-Blanc reduction). Aldehydes and ketones can also be reduced to alcohols by LAH, but this is usually done using milder reagents such as NaBH4. α,β-Unsaturated ketones are reduced to allylic alcohols. When epoxides are reduced using LAH, the reagent attacks the less hindered end of the epoxide, usually producing a secondary or tertiary alcohol. Organic reactions of lithium aluminium hydride Amines can be prepared by the LAH reduction of amides, oximes, nitriles, nitro compounds or alkyl azides. LAH is also able to reduce primary alkyl halides to alkanes.Lithium aluminium hydride is not able to reduce simple alkenes or benzene rings, and alkynes are only reduced if an alcohol group is nearby.


Thermal decomposition - Contents

At room temperature LAH is metastable. During prolonged storage it may slowly decompose to Li3AlH6 and LiH. This process can be accelerated by the presence of catalytic elements e.g. Ti, Fe, V.When heated LAH decompose in a three step reaction mechanism.
LiAlH4 rightarrow 1/3Li3AlH6 + 2/3Al + H2 (R1)
1/3Li3AlH6 rightarrow LiH + 1/3Al + 1/2H2 (R2)
LiH + Al rightarrow LiAl + 1/2H2 (R3)
R1 is usually initiated by the melting of LAH around a temperature of 150-170oC immediately followed by decomposition into solid Li3AlH6. From 200-250oC Li3AlH6 decompose into LiH (R2) which subsequently decompose into LiAl above 400oC (R3). R1 is effectively irreversible, because LiAlH4 is metastable. The reversibility of R2 has not yet been conclusively established. R3 is reversible with a equilibrium pressure of about 0.25 bar at 500oC. R1 and R2 can occur at room temperature with suitable catalysts.According to reactions R1-R3 LiAlH4 contains 10.6 wt % hydrogen thereby making LAH a potential hydrogen storage medium for future fuel cell powered vehicles. Cycling only R2 would store 5.6 wt % in the material in a single step (comparable to the two steps of NaAlH4).


Solubility data - Contents

LAH is soluble in many etheral solutions. However, it may spontaneously decompose due to the presence of catalytic impurities, though, it appears to be more stable in THF. Thus, THF is preferred over e.g. diethyl ether even despite the lower solubility.
Solubility data for LiAlH4 (mol/l)
Temperature (oC)
Solvent 0 25 50 75 100
Diethyl ether -- 5.92 -- -- --
THF -- 2.96 -- -- --
Monoglyme 1.29 1.80 2.57 3.09 3.34
Diglyme 0.26 1.29 1.54 2.06 2.06
Triglyme 0.56 0.77 1.29 1.80 2.06
Tetraglyme 0.77 1.54 2.06 2.06 1.54
Dioxane -- 0.03 -- -- --
Dibutyl ether -- 0.56 -- -- --
Note that water should not be used as a solvent for lithium aluminium hydride, which would react as in the following equation.
LiAlH4 + 4H2Orightarrow Li+ + Al3+ + 3OH- + 4H2



Crystal structure - Contents

The crystal structure of LAH belongs to the monoclinic crystal system and the space group is P21c. The crystal structure of LAH is illustrated to the right. The structure consists of Li atoms surrounded by five AlH4 tetrahedra. The Li atoms are bonded to one hydrogen atom from each of the surrounding tetrahedra creating a bipyramid arrangement. The side lengths of the unit cell are approx. a=4.82, b=7.81 and c=7.92, and the β angle is approx. 112 °. At high pressures (>2.2GPa) a phase transition into β-LAH occurs.


Thermodynamic data - Contents

The table summarizes thermodynamic data for LAH and reactions involving LAH, in the form of standard enthalpy, entropy and Gibbs free energy change, respectively.
Thermodynamic data for reactions involving LiAlH4
Reaction ΔHo (kJ/mol) ΔSo (J/(mol K)) ΔGo (kJ/mol) Comment
Li(s) + Al(s) + 2H2(g) rightarrow LiAlH4(s) -116.3 -240.1 -44.7 Standard formation from the elements.
LiH(s) + Al(s) + 3/2H2(g) rightarrow LiAlH4(s) -25.6 -170.2 23.6 Using ΔHof(LiH) = -90.5, ΔSof(LiH) = -69.9, and ΔGof(LiH) = -68.3.
LiAlH4(s) rightarrow LiAlH4(l) 22 -- -- Heat of fusion. Value is probably unreliable.
LiAlH4(l) rightarrow 1/3Li3AlH6(s) + 2/3Al(s) + 1/2H2(g) 3.46 104.5 -27.68 ΔSo calculated from reported values of ΔHo and ΔGo.
Change Text Size:
[A] [default] [A]

go back print page email to a friend make us your home page

about | terms of use | contact us
© 2022 Zazizam.com
